WR312G-LTE Industrial 4G/ LTE Router

Product Name :
WR312G-LTE Industrial 4G/ LTE Router
Model No :
wr312g lte
Innovative industrial secure LTE router WR312G Series is designed for IIoT applications by single WR312G high-speed LTE routing. Two RS232/422/485 ports are able to connect to local serial devices. The 3T3R radio can deliver up to 1.3Gbps high throughput. The USB design helps easy field installation. The SD card can store application programs or diagnostic log file. The support of OpenVPN and IPsec provides security to the gateway.


► WoMaster's industrial secured and rugged LTE router for IIoT WR302G, WR312G, WR322G Series


 Technology
Standard 3GPP Release 11/12 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS
IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1Q for VLAN
 Interface
Ethernet Port 2 x 10/100/1000MBase-T RJ45, Auto Negotiation, Auto-MDI/MDIX
System LED 1 x PWR: Green On
1 x SYS: Ready: Green On, Firmware Updating: Green Blinking
1 x DO: Red On
2 x Ethernet Ports: Link: Green On, Activity: Green Blinking
2 x Serial Ports (Serial 1/2, by model): Activity: Green Blinking
3 x Radio (Ra, Rb, Rc): Radio status
Ra: SIM detected: Green On, SIM not inserted: Off
Rb: 2/3G connection: Green On, Not 2/3G connection: Off
Rc: 4G connection: Green On, Note 4G connection: Off
USB 1 x USB for Configuration/Firmware Update
Reset System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds)
SMA Socket Up to 2 xRP-SMA Female
LTE 2T2R: ANT1 for LTE Main, ANT2 for LTE Aux OR
LTE + GPS: ANT1 for LTE Main, ANT2 for GPS
SIM Socket 2 x Nano SIM with redundancy
Micro SD (Only for E Series)
1 x for field diagnostic data logging
Serial Up to 2 x RS232/422/485, DB9
Power Input, Digital Output 6-Pin Removable Terminal Block Connector
   4 Pin for Redundant Power
   2 Pin for DO (Relay Alarm)
DO: Dry Relay Output with 1A /24V DC
 Cellular Properties  (LTE Cat.6)
Standard UMTS/HSPA 3GPP Release 8
LTE 3GPP Release 12 (LTE Cat.6)
Data Rate TD-SCDMA: DL Max. 4.2 Mbps, UL: Max.2.2 Mbps
HSPA: DL: Max. 42 Mbps, UL: Max. 5.76 Mbps
WCDMA: DL: Max 384 Kbps, UL: Max 384 Kbps
LTE-FDD: DL: Max. 300 Mbps, UL: Max. 50 Mbps, 2x2 DL MIMO
LTE-TDD: DL: Max. 226 Mbps, UL: Max. 28 Mbps, 2x2 DL MIMO
Band Information: LTE-E LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/ 1800/ 850/ 2600/ 900/ 800/ 700/ 1500MHz)
LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz)
WCDMA: FDD B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz)
Band Information: LTE-U LTE: FDD B2/B4/B5/B7/B12/B13/B17/ B25/B26/B29/B30/B66 (1900/ 1700/ 700/ 2600/ 700/ 700/ 700/ 1900/ 850/ 700/ 2300/ 1700MHz)
LTE-TDD: B41 (2500MHz)
WCDMA: B2/B4/B5 (1900/1700/850MHz)
Band Information: LTE-AP LTE FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26 (2100/ 1800/ 850/ 2600/ 900/ 850/ 850/ 1500/ 850MHz)
LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz)
TD-SCDMA: B39 (1900MHz)
WCDMA: B1/B5/B6/B8/B9/B19 (2100/ 850/ UMTS only/ 900/ 1800/ 850MHz)
 Cellular Properties (LTE Cat.4)
Standard GSM/GPRS/EDGE 3GPP Pelease 6
UMTS/HSPA 3GPP Release 8
LTE 3GPP Release 11
Data Rate GPRS: DL: max. 85.6 kbps, UL: max.85.6 kbps
EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps
HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps
LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO
LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO
Band Information: LTE-E LTE: FDD B1/B3/B5/B7/B8/B20 (2100/ 1800/ 850/ 2600/ 900/ 800MHz)
LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz)
WCDMA: FDD B1/B5/B8 (2100/ 850/ 900MHz)
GSM: B3/B8 (1800/ 900MHz)
Band Information: LTE-AU LTE: FDD B1/B2/B3/B4/B5/B7/B8/B28 (2100/ 1900/ 1800/ 1700/ 850/ 2600/ 900/ 700MHz)
LTE: TDD B40 (2300MHz)
WCDMA: FDD B1/B2/B5/B8 (2100/ 1900/ 850/ 900MHz)
GSM: B2/B3/B5/B8 (1900/ 1800/ 850/ 900MHz)
Band Information: LTE-U LTE: FDD B2/B4/B12 (1900/ 1700/ 700MHz)
WCDMA: B2/B4/B5 (1900/ 1700/ 850MHz)
Band Information: LTE-CN LTE FDD: B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz)
LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz)
TD-SCDMA: B34/B39 (2000/ 1900MHz)
WCDMA: B1/B8 (2100/ 900MHz)
CDMA: BC0
GSM: 900/1800MHz
 Wi-Fi Properties
Standard IEEE 802.11ac/a/b/g/n, 2T2R MINO
802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Data Rate 802.11ac: MCS0~9, max. 866Mbps
802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0~15, max.300Mbps
Check detail TX/RX information in User Manual
Frequency ISM Band, 2.412GHz~2.472GHz, 5.180MHz~5.825MHz(Band 1,4)
RSSI ≦20db, compliant with CE request
 GPS Properties
GNSS GPS/GLONASS/BeiDou/Galileo
Performance Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s
Sensitivity Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm
Accuracy < 1.5M
GNSS Frequency GPS/Galileo: 1575.42±1.023 MHz
GLONASS: 1597.5~1605.8 MHz
BeiDou: 1561.098±2.046 MHz
Antenna Frequency range: 1561~1615MHz
Polarization: RHCP or linear
VSWR: <2 (Typ.)
Passive antenna gain: >0dBi
 Software
Network Protocols TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP,NTP,ARP, ICMP,DDNS
Management Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
User Management  Radius client, TACACS+, local database
Serial communication TCP Server/TCP Cleint/UDP mode, TCP Alive check, Force TX Delimiter.Timeout/interval/length, Long Distance Termination
Time Managemant NTPv3, SNTP, Cellular Time
IoT AWS Agent, Azure Agent, ThingMaster Agent
Network Management IPv4, SNMP v1/v2c/v3/Trap, MIB II, Entity MIB, DHCP server/client, DHCP relay*, TFTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy)
Traffic Management Traffic Control, 1:1 NAT, Customized NAT, NAPT(SNAT/DNAT), Port Forwarding
Routing RIPv2*, Static Route
Security Firewall, DMZ, HTTPs, SSH, IEEE 802.1X/RADIUS
Redundancy Protocol Rapid Spanning Tree Protocol (RSTP)
VPN IPsec, OpenVPN (server/ client), L2TP*, GRE
Cellular Configuration Radio on/off, 2G, 3G and 4G modes Configurable, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning (by model), Backup Sim Retry (1-10 times)
WLAN Configuration WLAN Basic Settings: Radio on/off, AP/client mode, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSID configuration, SSID broadcast, VLAN ID, WLAN to LAN Link fault pass-through, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X
Utility ViewMaster, NetMaster, Ping, Traceroute
 Power Requirement
Input Voltage 24V(12~48VDC)
Reverse Polarity Protect Yes
Input Current 0.23A@24V
Power Consumption Max 5.52W@24VDC full traffic, suggest to reserve 15% tolerance
 Mechanical
Installation DIN Rail
Enclosure Material Steel Metal with Aluminum
Dimension 50(W) x 151(H) x 120(D) mm / without DIN Rail Clip
Ingress Protection IP30
Weight ≒600g  without package
 Environmental
Operating Temperature & Humidity -40°C~75°C , 5%~95% Non-Condensing
Storage Temperature -40°C~85°C
MTBF >200,000 hours
Warranty 5 years
 Approval
Safety EN60950-1 Compliance
EN62368-1:2014/AC:2017 Compliance
IEC 60255-27:2013 Compliance
EMC EN61000-6-2/EN61000-6-4 Compliance
EMI CISPR 22, FCC part 15B Class A Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5, EN61000-4-6 CS, EN61000-4-8 Magnetic Field, EN61000-4-12/16/17/18/29
Radio RED Compliance
Safety: EN 62368-1
EN 50385/EN62311 MPE assessment
EN 301 489-1/17/19/52, EN 55032/55024
EN 300 328/EN 301 893
EN 301 908-1
FCC Part 15B
Railway EN50121-4
Environmental EN60870-2-2:1998 Compliance
IEC 60068-2-21: 2006 Compliance
                      *Future Release
High Throughput Network Performance
・2-port Gigabit Ethernet Routing and Bridging
・Close to wire-speed NAT routing performance
・Ethernet ports’ hardware NAT, save CPU utilization
High speed 4G LTE & Fallback
・LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
・4G/3G/2G full cellular network compatibility
    LTE-E:
      - FDD B1/3/5/7/8/20 (2100/1800/850/2600/900/800MHz)
      - TDD B38/40/41 (2600/2300/2500MHz)
    LTE-U:
      - FDD B2/4/12 (1900/1700/700MHz)
Enhanced Cyber Security for Critical Application
・Support LAN & WAN Security
・Firewall for traffic classification
・DMZ, port forwarding, NAT for LAN protection
・OpenVPN, IPsec for secure connection
・HTTPs/SSH secure login
Management Features
・Various configuration paths, including Web GUI, Telnet, Utility and SNMP
・USB for easy field configuration and firmware upgrade
・Software selectable RS232/422/485 Serial Interface
・SD for field diagnostic log or extended application
Rugged Design for Wayside Surveillance, ITS Application
・Up to 150Mbps LTE network bandwidth with EN50121-4 for Industrial IoT, ITS, Railway track side application
・Effective heat dissipation design for operating in -40~70°C environments
・Railway EMC: EN50121-4 compliance
・CE Marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial

    		•

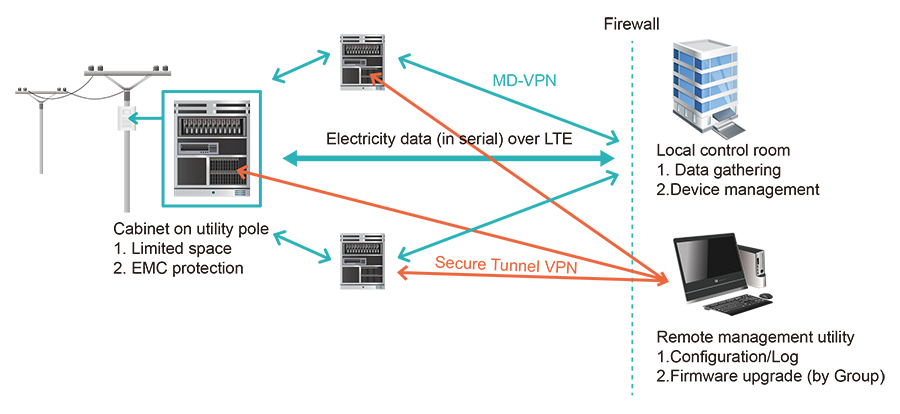

    • Real time status to improve energy efficiency
    • RS232/422/485 9-pin full serial functions
    • Secure control/data channel ◦MD-VPN
              ◦IPsec
              ◦OpenVPN
    • SD Card for persistent log storage
    • Consistent LTE connectivity & exceptional EMC capability

Ordering Information
 Model Name
WR302G Industrial Secuer Serial Server, 2GbE+2COM, USB, SD
WR312G-WLAN Industrial Secuer Wireless Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN
WR312G-LTE-E Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E Cat.6, 1SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR322GR-WLAN+LTE-E Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR322GR-WLAN+LTE-CN Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR322GR-WLAN+LTE6-E Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (C Series) Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (C Series) Industrial Secuer Cellular Router, 2GbE+1COM, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E (C Series) Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR322GR-WLAN+LTE-E (C Series) Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E,  GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR322GR-WLAN+LTE-CN (C Series) Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR322GR-WLAN+LTE6-E (C Series) Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (D Series) Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (D Series) Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E (D Series) Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E Cat.6, 2SIM,  FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (E Series) Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (E Series) Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
  *Embedded SIM by request
*LTE-AU/LTE-U Cat.4 by request
*LTE-AP/LTE-U Cat.6 by request
*Dual LTE concurrent by request
*GPS support for WR312G-LTE series by request
Package List
1 x Product Unit
1 x 6-pin Removable Terminal Connector
  2 x LTE Antenna, Black
1 x Atached Din Clip
1 x Quick Installation Guide
