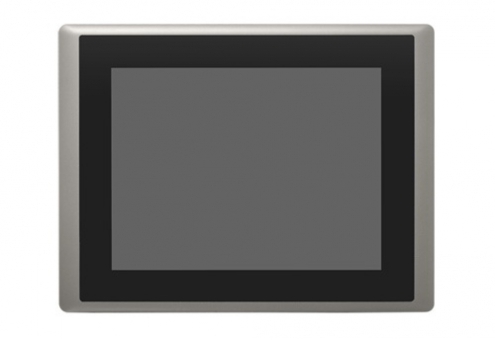

| CV-P2000 |
| IP65 Compliant Aluminum Die-Cast Front Frame |
| Supports Panel / Wall / VESA Mounting |
| True Flat IP65 Front Panel Protection |
| Wide Operating Temperature (-20°C to 70°C) |
| 12.1" ~21.5" SVGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch |
| Onboard Intel I3-6100U / I5-6300U (15W) |
| Brightness (cd/m2)：300-500 |
| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
|
CV-112 / P2002 | 12.1" TFT 800x600 (4:3) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-112 / P2002E | 12.1" TFT 800x600 (4:3) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CV-112H / P2002 | 12.1" TFT 1024x768 (4:3) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-112H / P2002E | 12.1" TFT 1024x768 (4:3) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CV-115 / P2002 | 15" TFT 1024x768 (4:3) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-115 / P2002E | 15" TFT 1024x768 (4:3) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CV-W115 / P2002 | 15.6" TFT 1366x768 (16:9) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-W115 /P2002E | 15.6" TFT 1366x768 (16:9) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CV-117 / P2002 | 17" TFT 1280x1024 (5:4) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-117 / P2002E | 17" TFT 1280x1024 (5:4) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CV-119 / P2002 | 19" TFT 1280x1024 (5:4) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-119 / P2002E | 19" TFT 1280x1024 (5:4) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CV-W121 / P2002 | 21.5" TFT 1920x1080 (16:9) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-W121 /P2002E | 21.5" TFT 1920x1080 (16:9) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CV-W124 / P2002 | 24" TFT 1920x1080 (16:9) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CV-W124 /P2002E | 24" TFT 1920x1080 (16:9) |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
