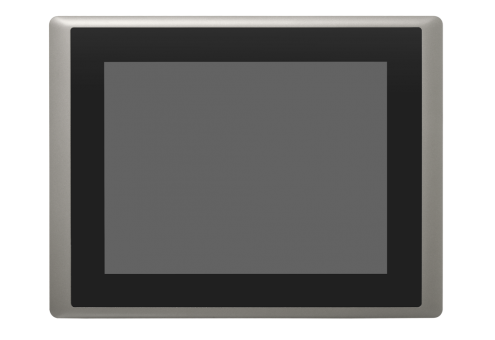

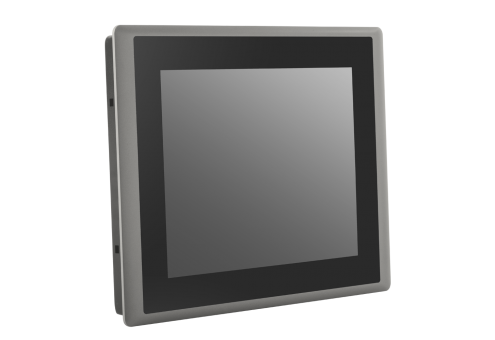

CV-P1000
IP65 Compliant Aluminum Die-Cast Front Frame
Supports Panel / VESA Mounting
True Flat IP65 Front Panel Protection
Wide Operating Temperature (-30°C to 80°C)
8.4" ~21.5" SVGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
Onboard Intel x7-E3950 / N4200 / E3845
Brightness (cd/m2)：300-500
| Product | Model Name | Display | CPU | I/O | Expansion |
|
|
|---|---|---|---|---|---|---|---|
|
NEW
|
CV-108/P1101 |
8.4" TFT 800x600 (4:3) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
NEW
|
CV-108 / P1001 |
8.4" TFT 800x600 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
NEW
|
CV-108 / P1001E |
8.4" TFT 800x600 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket
|
|
|
|
CV-110 / P1101 |
10.4" TFT 800x600 (4:3) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-110 / P1001 |
10.4" TFT 800x600 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-110 / P1001E |
10.4" TFT 800x600 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-110H / P1101 |
10.4" TFT 1024x768 (4:3) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-110H / P1001E |
10.4" TFT 1024x768 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-110H / P1001 |
10.4" TFT 1024x768 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-112 / P1101 |
12.1" TFT 800x600 (4:3) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-112 / P1001 |
12.1" TFT 800x600 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-112 / P1001E |
12.1" TFT 800x600 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-112H / P1101 |
12.1" TFT 1024x768 (4:3) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-112H / P1001 |
12.1" TFT 1024x768 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-112H / P1001E |
12.1" TFT 1024x768 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-115 / P1101 |
15" TFT 1024x768 (4:3) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-115 / P1001 |
15" TFT 1024x768 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-115 / P1001E |
15" TFT 1024x768 (4:3) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-W115 / P1101 |
15.6" TFT 1366x768 (16:9) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-W115 / P1001 |
15.6" TFT 1366x768 (16:9) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-W115 /P1001E |
15.6" TFT 1366x768 (16:9) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-117 / P1101 |
17" TFT 1280x1024 (5:4) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-117 / P1001 |
17" TFT 1280x1024 (5:4) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-117 / P1001E |
17" TFT 1280x1024 (5:4) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-119 / P1101 |
19" TFT 1280x1024 (5:4) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-119 / P1001 |
19" TFT 1280x1024 (5:4) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-119 / P1001E |
19" TFT 1280x1024 (5:4) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-W121 / P1101 |
21.5" TFT 1920x1080 (16:9) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-W121 / P1001 |
21.5" TFT 1920x1080 (16:9) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-W121 /P1001E |
21.5" TFT 1920x1080 (16:9) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
|
CV-W124 / P1101 |
24" TFT 1920x1080 (16:9) |
Intel® Atom® x7-E3950 Intel® Pentium® N4200 |
1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
|
|
CV-W124 / P1001 |
24" TFT 1920x1080 (16:9) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe |
|
|
|
CV-W124 /P1001E |
24" TFT 1920x1080 (16:9) |
Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO |
1x Mini-PCIe, 2x Universal I/O Bracket |
|
|
