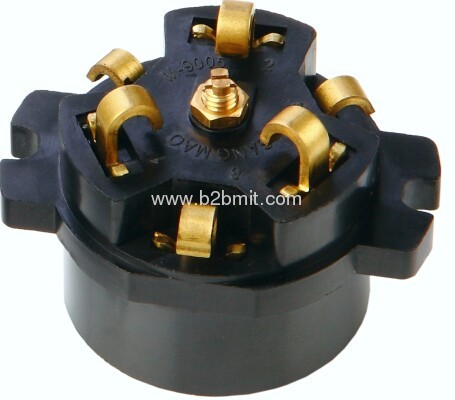

M-9005DEA Eared|Automatic Reset

Product Name :
M-9005DEA Eared|Automatic Reset



Product name Three-phase motor protectors / Motor thermal overload protection
Place of origin TAIWAN
Brand name SANG MAO
Model number M-9005DEA
Type 1" Three-Phase
Base Eared
Reset Automatic Reset
Horsepower 3/4 HP ~ 5 HP
Operation Temperature 90℃ ~ 150℃
Certificate UL



SPECIFICATION

Protects Motors 3/4 HP ~ 5 HP
Operating Temperature 90°C ~ 150°C
Operating Tolerance ± 5°C
Resume Temperature Tolerance ± 12℃
Trip Time 10± 5 Seconds
Electrical Ratings 220-240 / 440-480 VAC
Contacts Type Normally Close
Terminal Type Plate、Hook、Stub
Reset Type Automatic Reset



APPROVALS

UL APPROVAL 3/4 HP ~ 3 HP / 90℃~135℃

FEATURES

  1. Three–phase type motors

  2. Normally closed contacts type

  3. Solution to motor overheat and  locked rotor.

  4. Temperature and current dual protection

  5. Used in single and dual voltage type motors

  6. Variety mounting and terminal options

APPLICATION NOTES

  1. Single-Phase & Three-Phase motor thermal overload protectors for single and dual voltage industrial motors.
  2. Normally Closed contacts type.
  3. Solution to Motor Overheat and Locked rotor.
  4. Temperature and Current Dual Protection
  5. Variety mounting and terminal options.
  6. We offer Custom Design & Manufacturing services (OEM/ODM) for all Motor Protector product specifications.
  7. This series is suitable for diverse applications such as Industrial machinery motors, Various types of pumps, Refrigerator compressor, Air conditioning fan, Agricultural equipment, Heating appliances, Home appliances, etc.
