Sang Mao Enterprise Co. Ltd.

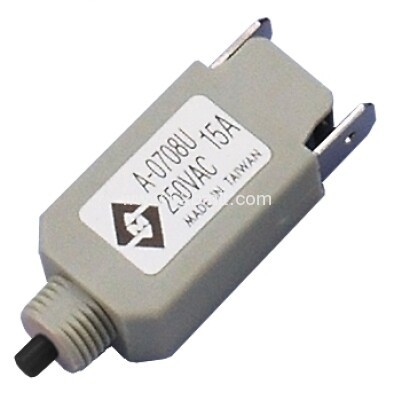

A-0708U M10 Bushing (Black Button)

Product Name :
A-0708U M10 Bushing (Black Button)



Product name Miniature Circuit Breaker / Overload Protector
Place of origin TAIWAN
Brand name SANG MAO
Model number A-0708U
Current 2 - 16 A
Voltage 32 VDC / 125 VAC / 250 VAC
Reset Manual Push Reset
Certificate UL



SPECIFICATION

STANDARD RATING 2 - 16AMPERE.
INPUT POWER 32VDC /125VAC / 250VAC.
DIELECTRIC STRENGTH 1500 VAC / 1 MINUTE.

RATED CONDITIONAL

SHORT-CIRCUIT CURRENT

IEC-60934 "PC. 1 1000A" WITH " FUSE 16 A gL / gG" .
INSULATION RESISTANCE > 100 MΩ.
RESET MANUAL PUSH RESET.



APPROVALS

U  L APPROVAL 2 - 10A 125 / 250 VAC(BLACK BUTTON)



APPLICATION

AC & DC MOTOR

GENERATOR

VOLTAGE REGULATOR

POWER STRIP

REGULATOR

UPS

COMMON PROTECT

Key Features:

- Single pole thermal circuit breaker in a miniaturized design.

- AC/DC rated protection.

- Easy and quick reset after tripping due to overcurrent.

- Available in various threaded and bushings.

- Quick connect terminals

- Applications in AC & DC motor、generator、power strip、power tools、industrial equipment、power generators、UPS、common protect appliances.
