Front Bezel IP66 Protection
7H Hardness Anti-scratch PCAP Touch
Aesthetic Silver-white Chamfered Edges

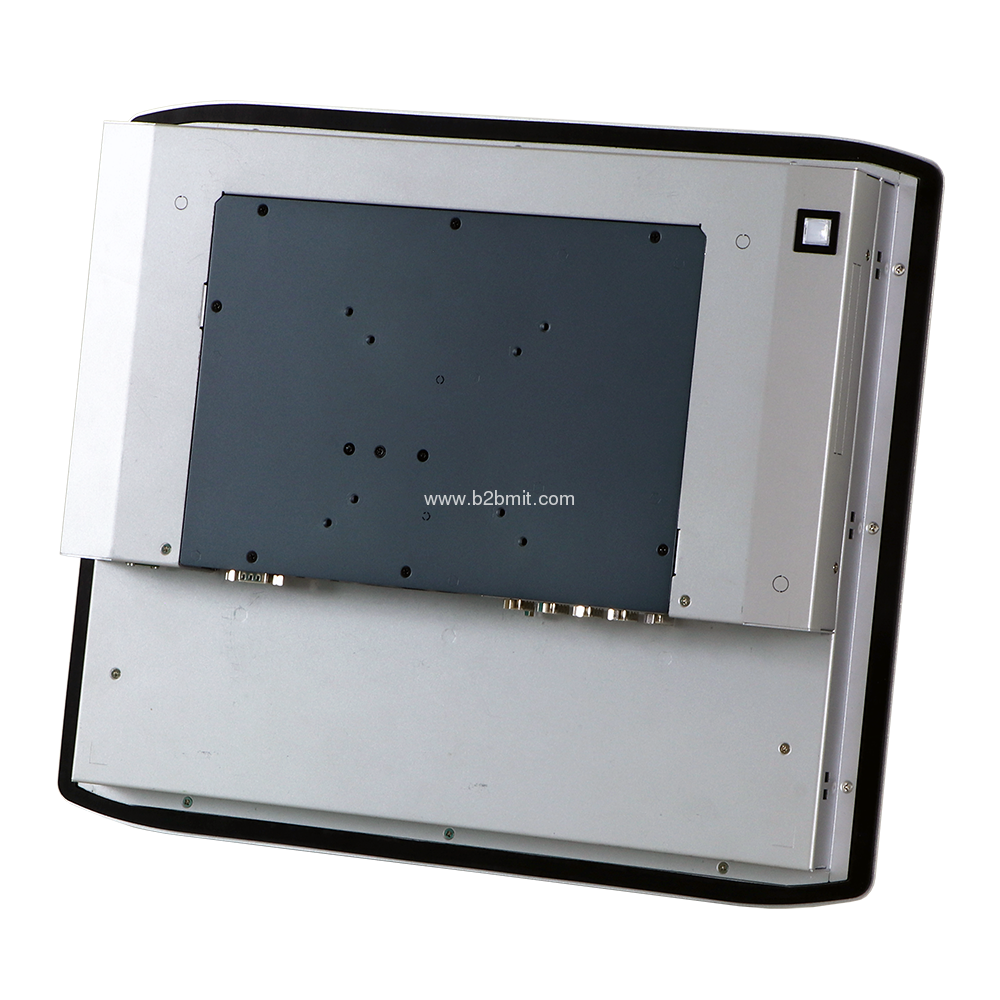

Supports Panel and VESA Mount
| Model | PPC-N177P-1A1 | PPC-N177P-2A1 | PPC- N177R-1A1 | PPC-N177R-2A1 | ||
| Processor System | CPU | Intel® Core® i5-7200U | Intel® Core® i3-7100U | Intel® Core® i5-7200U | Intel® Core® i3-7100U | |
| Frequency | Dual-core up to 3.1GHz | Dual-core up to 2.4GHz | Dual-core up to 3.1GHz | Dual-core up to 2.4GHz | ||
| System Chipset | N/A | |||||
| Cache | 3 MB | |||||
| BIOS | UEFI | |||||
| Memory | Technology | Dual Channel DDR4 2133 MHz SDRAM | ||||
| Max. Capacity | 32 GB | |||||
| Type | 2x 260-pin SO-DIMM | |||||
| Panel | Panel Size | 17" | ||||
| Panel Type | LCD Panel | |||||
| Aspect Ratio | 4:3 | |||||
| Resolution | SXGA, 1280 x 1024 | |||||
| Viewing Angle | 160(H) x 140 (V) | |||||
| Brightness | 350 cd/m2 | |||||
| Contrast Ratio | 800:1 | |||||
| Response Time | 12 msec | |||||
| Touchscreen | Touchscreen Type | Projected Capacitive | 5-wire Resistive | |||
| Surface Hardness | 7 Mohs | 3 Mohs | ||||
| Durability | N/A | 36 Millions Times | ||||
| Transparency | 90% (±3%) | 80% (±3%) | ||||
| Display | HDMI | 1x HDMI, up to 4096 x 2160 @ 60 Hz | ||||
| DP | 1x DP, up to 4096 x 2160 @ 60 Hz | |||||
| VGA | N/A | |||||
| DVI | N/A | |||||
| I/O Interface | USB | 4x USB 3.0 | ||||
| Serial Port | 3x RS-232 and 1x RS-232/422/485 | |||||
| Ethernet | 2x GbE (Lan 1: Intel® i219V, Lan 2: Intel® i211AT) | |||||
| Audio | Line Out, Mic In (Realtek® Audio Codec) | |||||
| GPIO / DIO | 8-pin Digital I/O (DB-9 Connector) | |||||
| Antenna Hole | N/A (Optional) | |||||
| Others | N/A | |||||
| Storage | 2.5" HDD / SSD | 1x Internal 2.5” HDD/SSD | ||||
| M.2 | 1x M.2 M Key 2280 (PCIe x4, SATA III) | |||||
| mSATA | N/A | |||||
| RAID | RAID 0/1 (Optional) | |||||
| Expansion | Mini PCIe | 1x Full Size (PCIe X1 / USB2.0) | ||||
| M.2 | 1x M.2 E Key 2230 | |||||
| PCI / PCIe | N/A | |||||
| SIM Holder | 1 | |||||
| Power | Power Mode | AT / ATX | ||||
| Power Supply Voltage | 9-36V DC Input | |||||
| Connector Type | 2-pin Terminal Block | |||||
| Power Consumption (Typical) | 1.37A @ 12V (16.5 W) | |||||
| Mounting | Type | VESA Mount (75 x 75, 100 x 100 mm) / Panel Mount | ||||
| Environment | Operating Temperature | -20~60°C (-4~140° F) w/ Extended Operation Temp. RAM & Storage | ||||
| Storage Temperature | -40~85°C (-40~185° F) | |||||
| Humidity | 5~95% @ 40° C, Non-condensing | |||||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 Hour per Axis | |||||
| Shock | 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration | |||||
| General | Certification | CE / FCC Class A | ||||
| Thermal Dissipation | Fanless | |||||
| Ingress Protection | Front IP66 | |||||
| Material | Aluminum Front Cover | |||||
| Dimensions (W x H x D) | 426 x 361 x 74mm (16.78" x 14.22" x 2.72") | |||||
| Net Weight | 4.86 kg (10.714 Ib) | |||||
| Operating System | Windows 10 (IoT 64 bit / Professional), Linux Kernel 4.0.x or above | |||||
Human Machine Interface (HMI)Factory / Manufacturing AutomationATM / Self-service / KioskVending Machine / Ticketing Machine Ordering Information
| Part No. | Description |
| PPC-N177P-1A1 | 17" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i5-7200U CPU, Projected Capacitive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector |
| PPC-N177P-2A1 | 17" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i3-7100U CPU, Projected Capacitive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector |
| PPC-N177R-1A1 | 17" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i5-7200U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector |
| PPC-N177R-2A1 | 17" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i3-7100U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector |
Packing List
| Description | |
| 1 x PPC-N177 | |
| 1 x Power Adapter | |
| 16 x Panel Mounting Screws |
Optional Items
| Part No. | Description |
| AWD-WF001 | Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size |
| AWD-WF003 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size |
| AWD-WF004 | Wi-Fi 802.11 b/g/n + BT4.0 (1T1R) + 2 Antennas (Single Band), M.2 2230 Type |
| AWD-WF005 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), M.2 2230 Type |
| AWD-4G003 | 4G(LTE) EG25-G + 2 Antennas, Full Size (for Global) |
| AWD-4G004 | 4G(LTE) EC25EFA + 2 Antennas, Full Size(for Europe/Taiwan/China/Hong Kong) |
| ACS-110-STD | VESA Stand (75x75, 100x100 mm), Supporting up to 15 kg Panel PC / Monitor |
